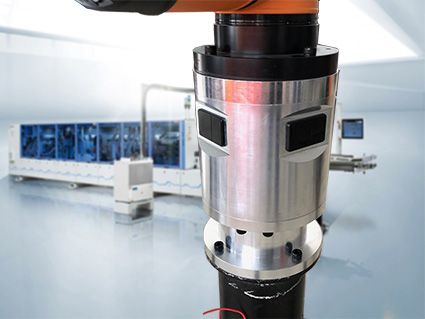

SR-7 series intelligent safety cooperative robot collision detection function is close to the sensor. If a person enters the robot's working range of about 0.3-1 meters, the intelligent safety cooperative robot will automatically slow down to a safe speed. If the person leaves, the intelligent safety cooperative robot will automatically recover To set the working speed, reduce the time efficiency of the robot repeated startup. This patented product not only improves the safety of operators and peripheral equipment, but also improves work efficiency.

Security warning box

According to the working range of the robot, set a 360-degree safety warning with a range of 0.5-2 meters

When safety is triggered, it is reduced to a safe speed, and the normal working speed is entered when a person leaves

Reduce downtime and improve work efficiency

Reduce equipment failures and improve work efficiency

   Degrees of freedom: 6

   Working range: 625mm

   Load: 3 Kg

   Weight: 15.5 Kg

   Rated life: 30000h more

   Positioning accuracy: soil 0.02 mm

   End speed: ^1.9 m/s

   Standby power consumption: 150W (under normal operating conditions)

   Material: Aluminum alloy

   Ambient humidity: 25-85% (no condensation)

   Ambient temperature: 0-45°C
