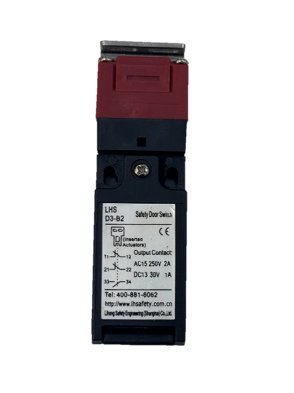

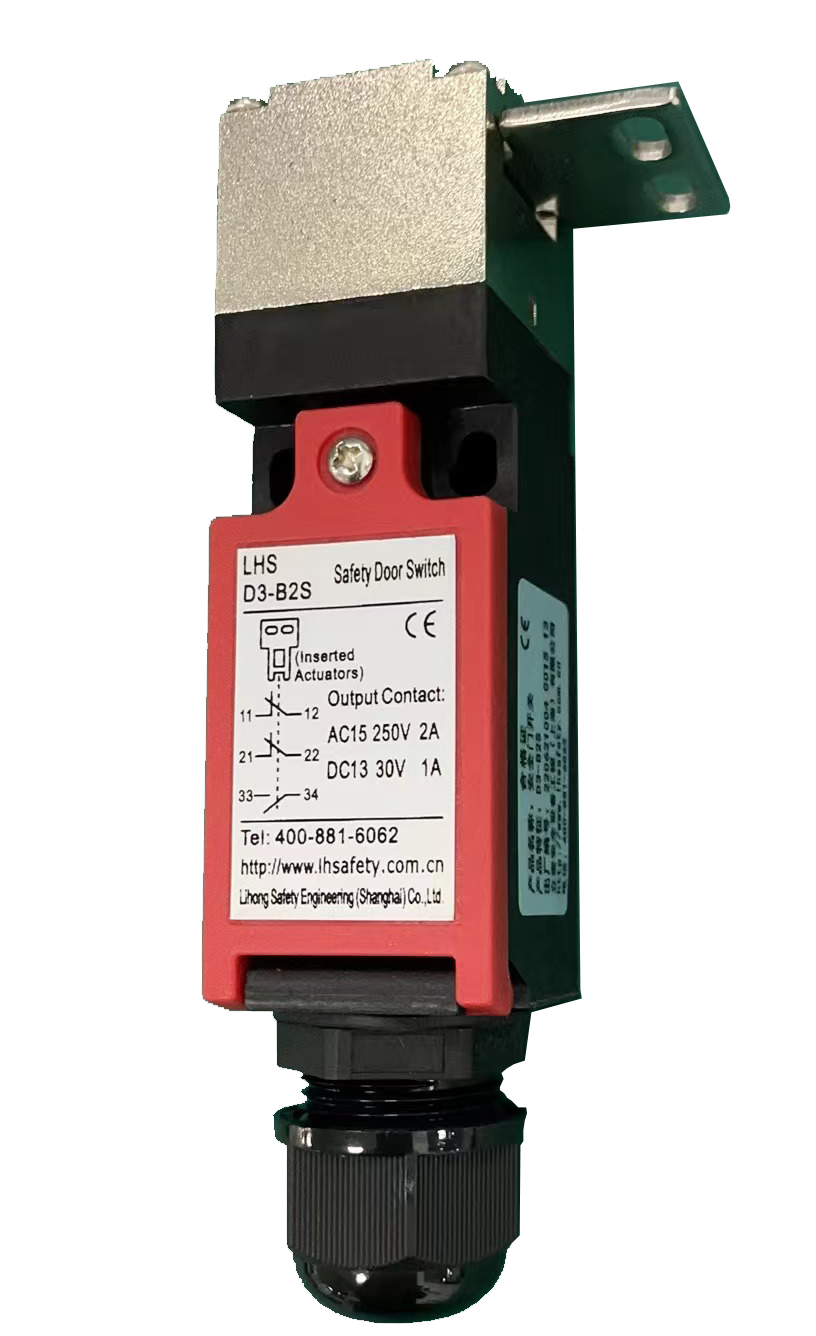

Safety door lock switch D3-B2S

Safety door lock switch

• Standard contact for safety loop: 2NC+1NO

• Small fuselage, suitable for narrow installation space

• Metal switch head, which can be adjusted in four directions.

• Built-in 3 groups of contacts, can complete a variety of wiring methods.

• The standardized contacts ensure the high reliability of contact.

▊

Ordering information

Switch model	Contact configuration	Catheter opening/connector	type
D3-B2S	2NC+1NO	without
D3-B2S-M	2NC+1NO	M12 Connector waterproof type
BS03	metal	/	Ordinary handle
BS04	metal	/	Key handle
Description:	D3-B2S needs to be equipped with a handle, and the handle model is D3-B2S-MR30.

▊	Locking tongue type

Horizontal mounting K1

Vertical mounting K2

Wide-mounted K3

Short L-shaped mounting K4

Movable mounting K5

Safety latch/handle

Safety latch

BS02

Safety latch

BS03

Safety latch

BS04



▊	performance

security certificate	Mechanical reliability	Blod=2.5ⅹ10000000 is operated under a load of 100mA. Lines ISO 13849-1 to PLe, depending on the system architecture. EN 62061 to SIL3, depending on the system architecture.
	Safety data	Use 8 cycles/hour/24 hours /365 days MTTFD every year for 356 years.
the protection grades		IP67(excluding inducer)
Life span *1	machinery	Not less than 1 million times
	electric	Not less than 100,000 times (AC-12 250V 4A)
		Not less than 1 million times (24V AC/DC 100mA)
Pollution degree (operating environment)		Grade 3
ambient temperature		-15~40℃
relative humidity		45-80%

▊	Model and contact composition

model

Contact composition

(Door opening and closing detection switch+lock monitoring switch)

Contact form

Action mode

D3-B2S

2NC/1NO

▊	Shape and installation dimensions

Shape and installation dimensions

▊	Head installation direction

Installation direction	Head change direction	The installation direction of the safety door switch head can be changed to adapt to more installation environments. The position of the shell is unchanged, only the direction of the head can be changed.

▊	Example diagram of circuit connection

▊	Safety interlock switch selection table

		▲Safety door lock switch	Electromagnetic door lock switch	Electromagnetic door lock switch	AI intelligent security door lock
select type mark accurate	model	D3-B2S	D3SL	D3NL	AI box-F
	Contact setting	2NC/1NO	2NC/1NC+2NC/1NO	4NC/2NO	2NC/1NC+2NC/1NO
	shell	ABS plastic	ABS plastic	ABS plastic	metal
	Head mounting	Four directions	Four directions	Four directions	Left and right direction
	Locking force	50N	2000N	2000N	2000N
	the protection grades	IP67	IP67	IP67	IP67
characteristic	The operating key is adjustable.		◼	◼	◼
	24VDC electromagnetic locking/ Mechanical unlocking		◼	◼	◼
	Door monitoring	◼	◼	◼	◼
security certificate	Safety CErtification ce certification	◼	◼	◼	◼

▊	Construct a safety loop according to the number of door locks
