Detection mode

Opposite type Opposite type

Detection distance

0~10m

Light source (luminous wavelength)

Infrared light 940nm

Standard inspection object

No, transparent body: φ8mm or more.

angle of divergence

Emitter and receiver: 3 ~ 10.

Anti-light interference

Incandescent lamp: below 3000lx; Sunlight: below 10000lx

attended mode

导线引出型 ( 导线长度 2m)电气

electrical specification

Power supply voltage

DC12-24V

Consumption current

Emitter: less than 20mA; Photoreceptor: less than 10mA.

Control output

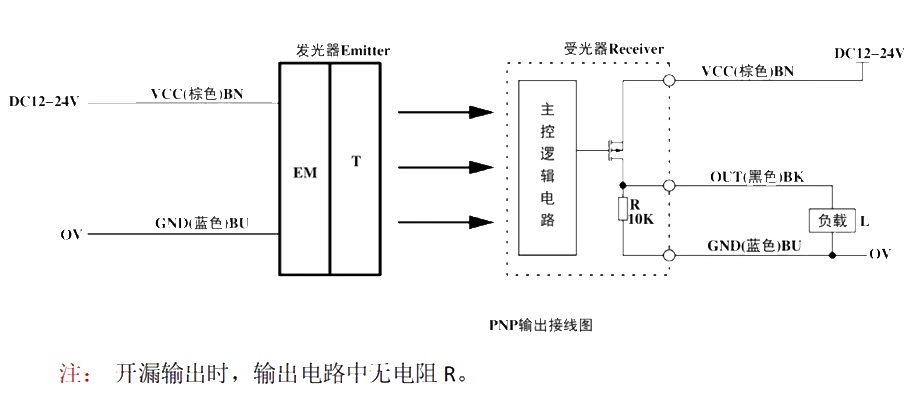

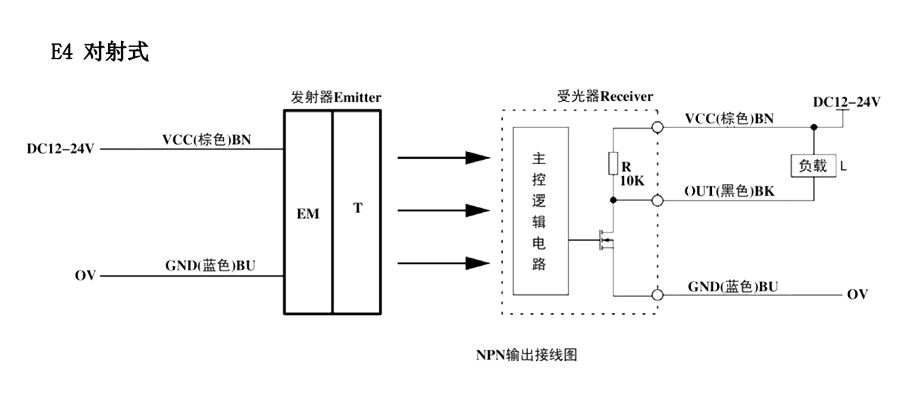

PNP output, NPN output (optional)

Residual voltage

1V below

Response time

Action and reset: less than 2ms each.

Indicator light

Power indicator (red), action indicator (green)

Insulating electricity

More than 20MΩ (use DC500V megohmmeter

Anti-electromagnetic interference level

4 级

Environmental/physical characteristics

vibrate

ambient humidity

Working time: -10~+55℃, storage time: -40~+85℃

ambient humidity

At work/working：35~85%RH，When saving /storage：35~95%RH

the protection grades

IP65

shell

plastic(ABS）

lens lens

plexiglass(PMMA)

Applicable standards

EMC electromagnetic radiation

GB/T 17626.3 (EN 61000-6-3)

EMCbe anti-interference

GB/T 17626.2 (EN 61000-6-2)

vibrate

GB/T 2423.10 (EN 60068-2-6)

lash

GB/T 2423.5(EN 60068-2-27)

Harmful substance

2015/863

authentication

CE
