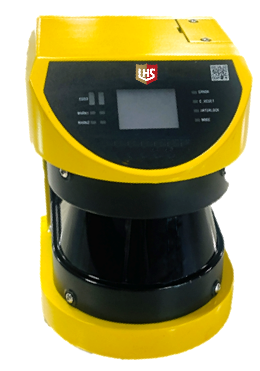

OLM4201 security laser scanner


· OLM 4201 lidar is based on the principle of pulsed laser ranging.

· The angle of 200 is realized by rotating scanning.

· The protection distance of 4.2m is adjustable.

· Support users to customize 16×3 groups of sectors with different shapes, and output safely.

· Can provide functional safety output.

Product introduction

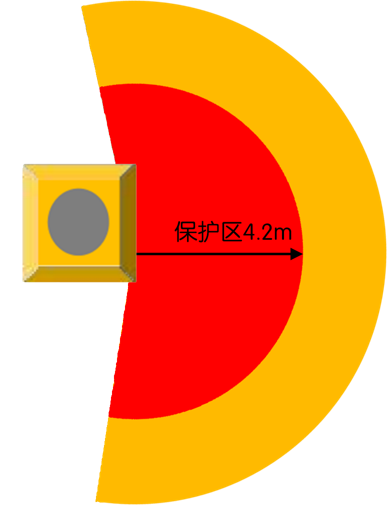

· Provide real-time hazardous area detection

· Irregular safety detection and protection up to 4.2m.

· Obstacle avoidance can be set according to the site environment.

· Used in stop equipment that can safely output.

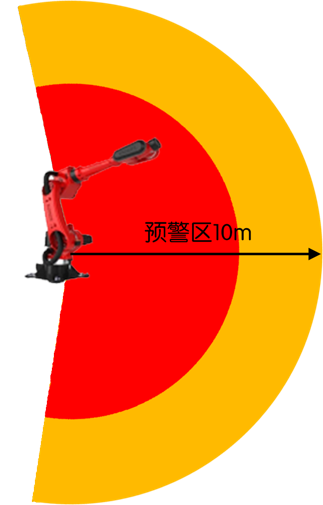

Early warning area

· Obstacle avoidance can be set according to the site environment.

· Used in stop equipment that can safely output.

specifications and models

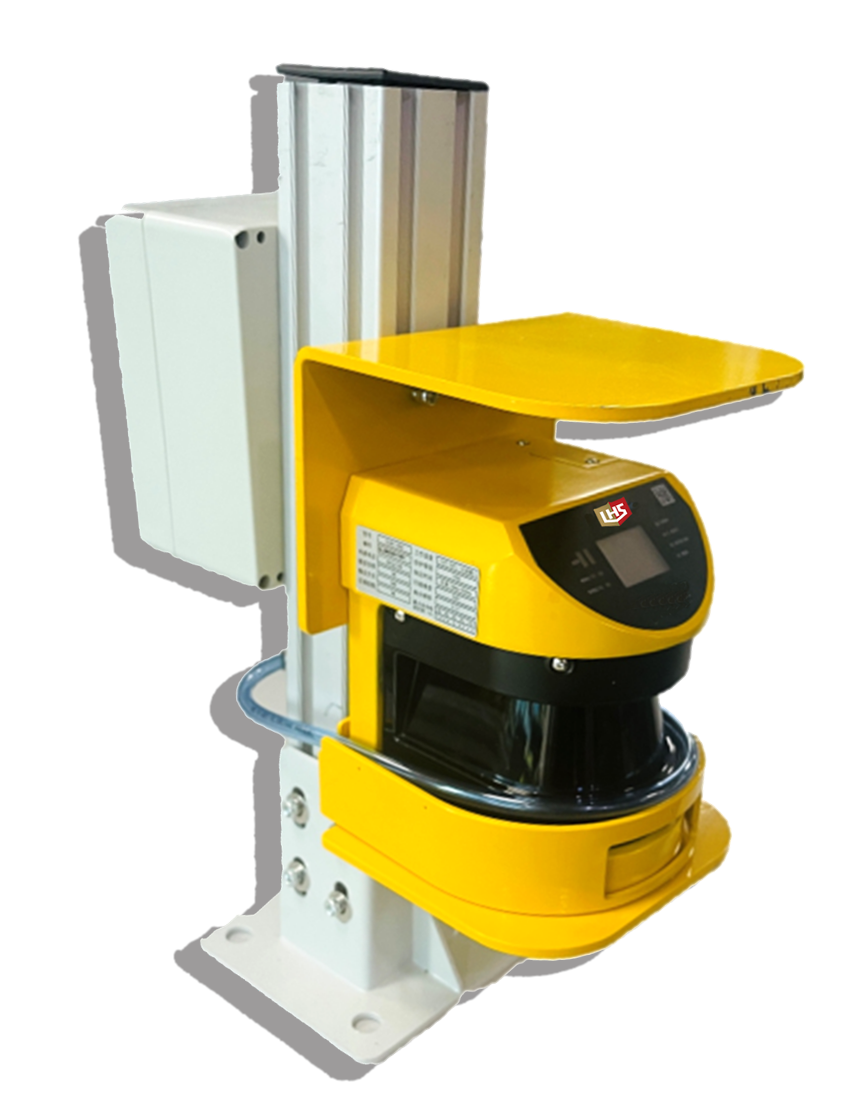

Vertical floor support

product name	model	Detection radius	Scanning angle	output form
Safety laser scanner	OLM4201series	4m@1.8%reflectivity	200° (-10°~190°)	PNP
OLM4201-ZJ40	Protect the bracket horizontally and implement the installation bracket.
Power cord	5Mgive/present as a gift	Clean the dust such as metal from the mirror surface.
Programming line	give/present as a gift
explain

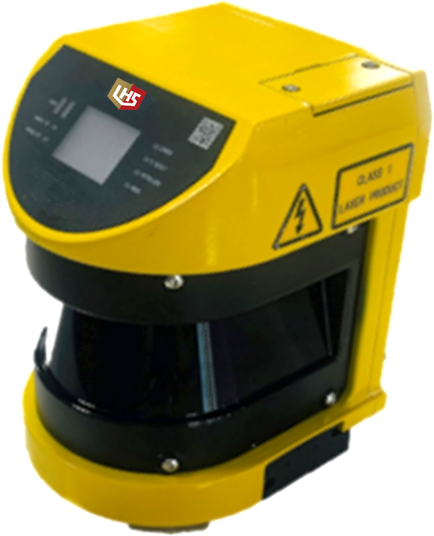

Laser scanner main body


Floor mounting bracket


Power cord

Programming line

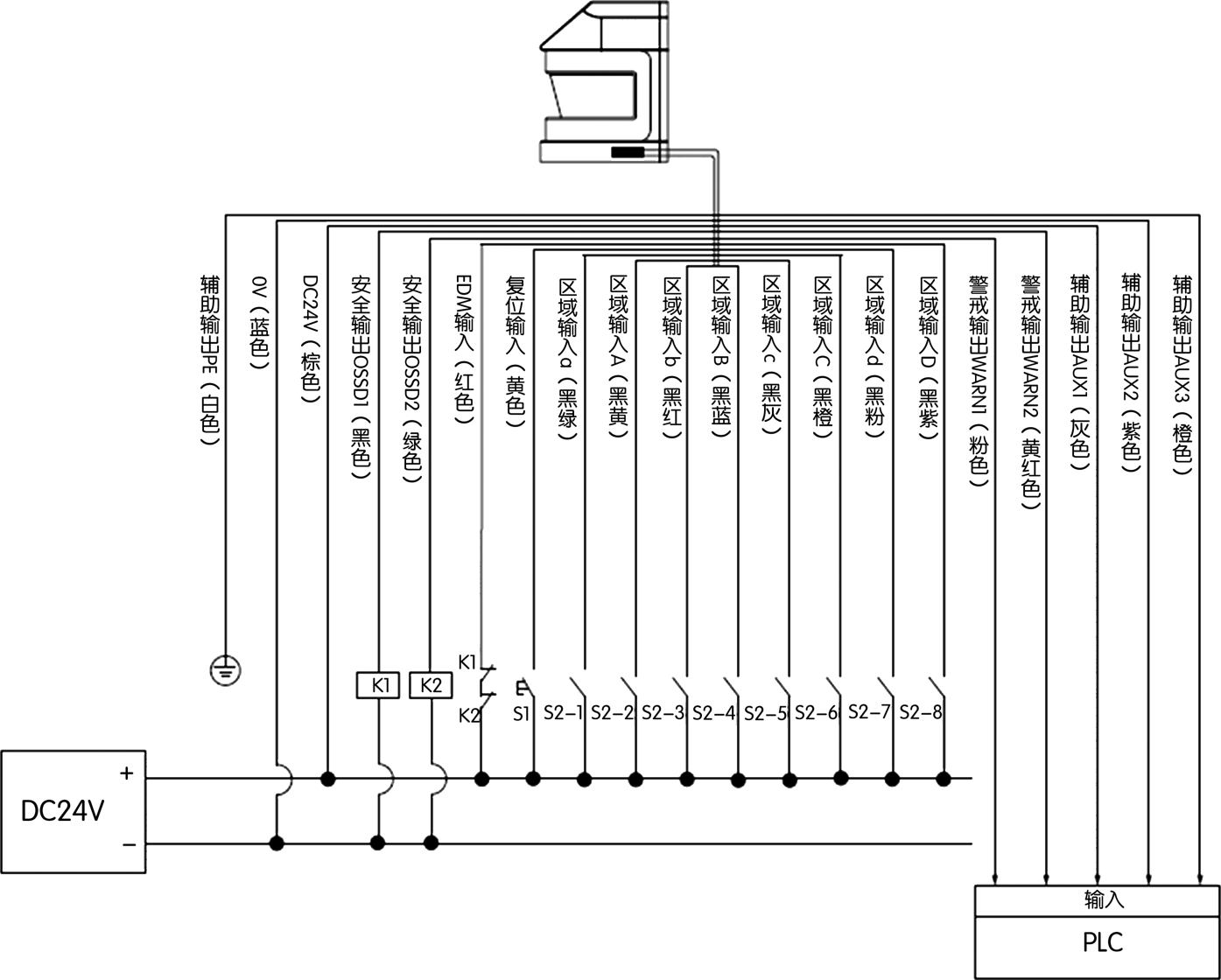

Typical wiring diagram


technical parameter

General necessary added value of protected areas

Optical characteristics
Laser light source	Wavelength 905n, a kind of laser products.
Detection radius	Radius 10m@20% reflectivity
Scanning angle range	200°(-10°~190°)	Angular resolution	0.5°
reflectivity	minimum1.8%
100mm
Distance between the origin of the scanning plane and the lower edge of the housing	65mm
Electrical/mechanical parameters
operating voltage	DC24V（±10%）
power consumption	8s（typical value）
Number of scanning laps	8W（typical value）
scan period	PNPOutput+Ethernet output
Response time	100×100×115mm
Safe output	Two-way transistor push-pull output (PNP or NPN), load current 200mA, residual voltage below 1.4V V.
Warning output	Two-way transistor push-pull output (PNP), load current 200mA, residual voltage below 1.4V
Auxiliary output	Transistor output (NPN), load current 200mA, residual voltage below 1.4V v.
Diagnostic coverage rate	99%
Mean time to failure without danger	200a

Environmental characteristics
ambient temperature	Work:-10℃ ~ 50℃; Storage: -25℃~60℃
ambient humidity	RH≤85% (no ice and condensation)
Optical interference	Incandescent lamp 60000lx
lash	EN 61496-1:10gAcceleration, 16ms pulse duration, 1000 10 collisions on each of the three axes.
vibrate	En 61496-1: frequency range of 10-55hz, scanning speed of 1 octave/minute, amplitude of 0.35±0.05mm, 20 scans/axis, 3 axes.
the protection grades	IP65
shell	aluminium alloy
window	PC
meet a criterion	EN 61496-1、EN 61496-3、EN ISO 13849-1、EN 61508、EN 62061、EN 60825

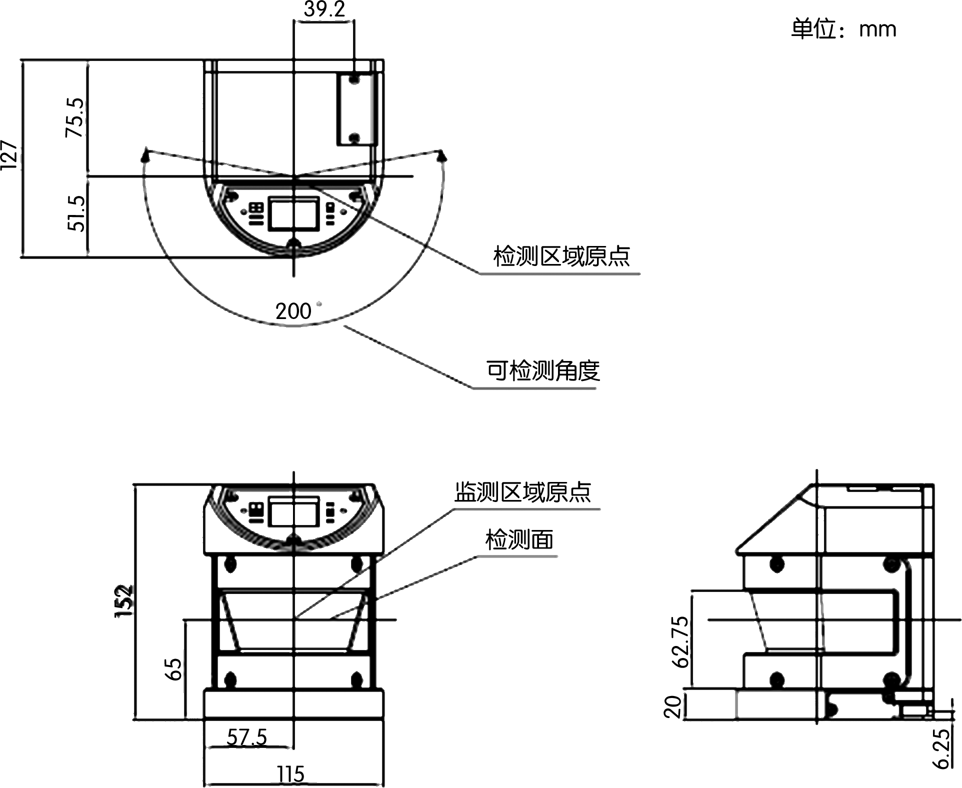

outline dimension
