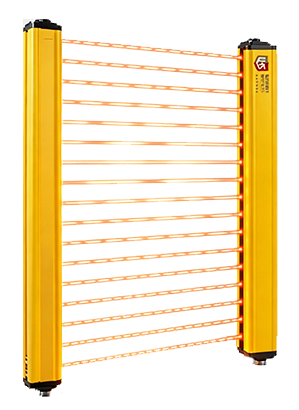

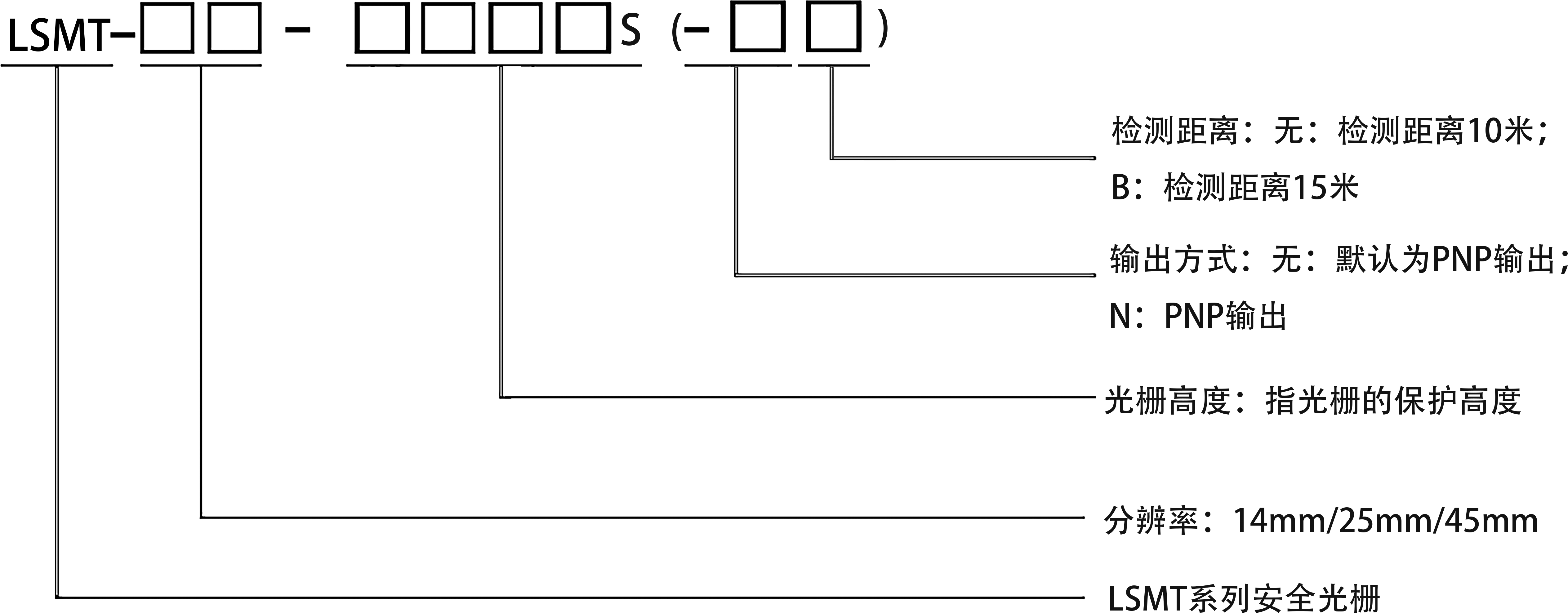

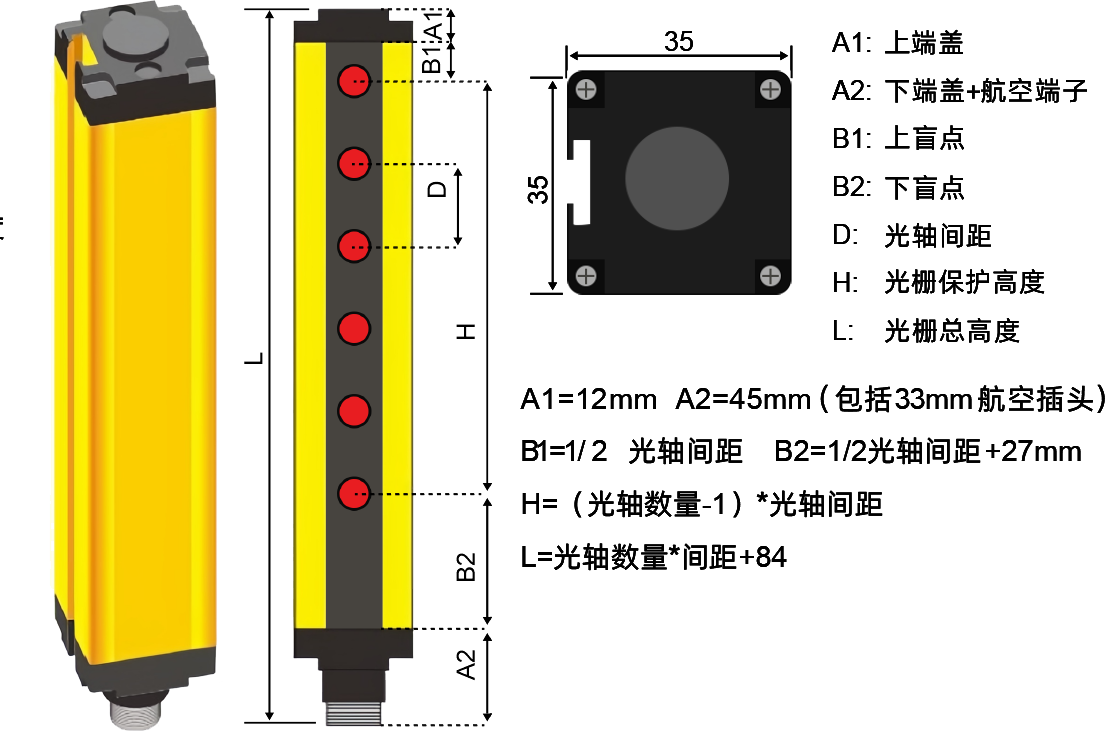

型号

分辨率（mm）

光轴数

保护高度（mm）

总长度（mm）

LSMT-14-0070S

14

8

70

164

LSMT-14-0090S

14

10

90

184

LSMT-14-0110S

14

12

110

204

LSMT-14-0130S

14

14

130

224

LSMT-14-0150S

14

16

150

244

LSMT-14-0170S

14

18

170

264

LSMT-14-0190S

14

20

190

284

LSMT-14-0210S

14

22

210

304

LSMT-14-0230S

14

24

230

324

LSMT-14-0250S

14

26

250

344

LSMT-14-0270S

14

28

270

364

LSMT-14-0290S

14

30

290

384

LSMT-14-0310S

14

32

310

404

LSMT-14-0330S

14

34

330

424

LSMT-14-0350S

14

36

350

444

LSMT-14-0370S

14

38

370

464

LSMT-14-0390S

14

40

390

484

LSMT-14-0410S

14

42

410

504

LSMT-14-0430S

14

44

430

524

LSMT-14-0450S

14

46

450

544

LSMT-14-0470S

14

48

470

564

LSMT-14-0490S

14

50

490

584

LSMT-14-0510S

14

52

510

604

LSMT-14-0530S

14

54

530

624

LSMT-14-0550S

14

56

550

644

LSMT-14-0570S

14

58

570

664

LSMT-14-0590S

14

60

590

684

LSMT-14-0610S

14

62

610

704

LSMT-14-0630S

14

64

630

724

LSMT-14-0650S

14

66

650

744

LSMT-14-0670S

14

68

670

764

LSMT-14-0690S

14

70

690

784

LSMT-14-0710S

14

72

710

804

LSMT-14-0730S

14

74

730

824

LSMT-14-0750S

14

76

750

844

LSMT-14-0770S

14

78

770

864

LSMT-14-0790S

14

80

790

884

LSMT-14-0810S

14

82

810

904

LSMT-14-0830S

14

84

830

924

LSMT-14-0850S

14

86

850

944

LSMT-14-0870S

14

88

870

964

LSMT-14-0890S

14

90

890

984

LSMT-14-0910S

14

92

910

1004

LSMT-14-0930S

14

94

930

1024

LSMT-14-0950S

14

96

950

1044

LSMT-14-0970S

14

98

970

1064

LSMT-14-0990S

14

100

990

1084

LSMT-14-1010S

14

102

1010

1104

LSMT-14-1030S

14

104

1030

1124

LSMT-14-1050S

14

106

1050

1144

LSMT-14-1070S

14

108

1070

1164

LSMT-14-1090S

14

110

1090

1184

LSMT-14-1110S

14

112

1110

1204

LSMT-14-1130S

14

114

1130

1224

LSMT-14-1150S

14

116

1150

1244

LSMT-14-1170S

14

118

1170

1264

LSMT-14-1190S

14

120

1190

1284

LSMT-14-1210S

14

122

1210

1304

LSMT-14-1230S

14

124

1230

1324

LSMT-14-1250S

14

126

1250

1344

LSMT-14-1270S

14

128

1270

1364

LSMT-14-1290S

14

130

1290

1384

LSMT-14-1310S

14

132

1310

1404

LSMT-14-1330S

14

134

1330

1424

LSMT-14-1350S

14

136

1350

1444

LSMT-14-1370S

14

138

1370

1464

LSMT-14-1390S

14

140

1390

1484

LSMT-14-1410S

14

142

1410

1504

LSMT-14-1430S

14

1430

1524

型号

分辨率（mm）

光轴数

保护高度（mm）

总长度（mm）

LSMT-25-0060S

25

4

60

164

LSMT-25-0100S

25

6

100

204

LSMT-25-0140S

25

8

140

244

LSMT-25-0180S

25

10

180

284

LSMT-25-0220S

25

12

220

324

LSMT-25-0260S

25

14

260

364

LSMT-25-0300S

25

16

300

404

LSMT-25-0340S

25

18

340

444

LSMT-25-0380S

25

20

380

484

LSMT-25-0420S

25

22

420

524

LSMT-25-0460S

25

24

460

564

LSMT-25-0500S

25

26

500

604

LSMT-25-0540S

25

28

540

644

LSMT-25-0580S

25

30

580

684

LSMT-25-0620S

25

32

620

724

LSMT-25-0660S

25

34

660

764

LSMT-25-0700S

25

36

700

804

LSMT-25-0740S

25

38

740

844

LSMT-25-0780S

25

40

780

884

LSMT-25-0820S

25

42

820

924

LSMT-25-0860S

25

44

860

964

LSMT-25-0900S

25

46

900

1004

LSMT-25-0940S

25

48

940

1044

LSMT-25-0980S

25

50

980

1084

LSMT-25-1020S

25

52

1020

1124

LSMT-25-1060S

25

54

1060

1164

LSMT-25-1100S

25

56

1100

1204

LSMT-25-1140S

25

58

1140

1244

LSMT-25-1180S

25

60

1180

1284

LSMT-25-1220S

25

62

1220

1324

LSMT-25-1260S

25

64

1260

1364

LSMT-25-1300S

25

66

1300

1404

LSMT-25-1340S

25

68

1340

1444

LSMT-25-1380S

25

70

1380

1484

LSMT-25-1420S

25

72

1420

1524

LSMT-25-1460S

25

74

1460

1564

LSMT-25-1500S

25

76

1500

1604

LSMT-25-1540S

25

78

1540

1644

LSMT-25-1580S

25

80

1580

1684

LSMT-25-1620S

25

82

1620

1724

LSMT-25-1660S

25

84

1660

1764

LSMT-25-1700S

25

86

1700

1804

LSMT-25-1740S

25

88

1740

1844

LSMT-25-1780S

25

90

1780

1884

LSMT-25-1820S

25

92

1820

1924

LSMT-25-1860S

25

94

1860

1964

LSMT-25-1900S

25

96

1900

2004

LSMT-25-1940S

25

98

1940

2044

LSMT-25-1980S

25

100

1980

2084

LSMT-25-2020S

25

102

2020

2124

LSMT-25-2060S

25

104

2060

2164

LSMT-25-2100S

25

106

2100

2204

LSMT-25-2140S

25

108

2140

2244

LSMT-25-2180S

25

110

2180

2284

LSMT-25-2220S

25

112

2220

2324

LSMT-25-2260S

25

114

2260

2364

LSMT-25-2300S

25

116

2300

2404

LSMT-25-2340S

25

118

2340

2444

LSMT-25-2380S

25

120

2380

2484

LSMT-25-2420S

25

122

2420

2524

LSMT-25-2460S

25

124

2460

2564

LSMT-25-2500S

25

126

2500

2604

LSMT-25-2540S

25

128

2540

2644

LSMT-25-2580S

25

130

2580

2684

LSMT-25-2620S

25

132

2620

2724

LSMT-25-2660S

25

134

2660

2764

LSMT-25-2700S

25

136

2700

2804

LSMT-25-2740S

25

138

2740

2844

LSMT-25-2780S

25

140

2780

2884

LSMT-25-2820S

25

142

2820

2924

LSMT-25-2860S

25

144

2860

2964

型号

分辨率（mm）

光轴数

保护高度（mm）

总长度（mm）

LSMT-45-0120S

45

4

120

244

LSMT-45-0200S

45

6

200

324

LSMT-45-0280S

45

8

280

404

LSMT-45-0360S

45

10

360

484

LSMT-45-0440S

45

12

440

564

LSMT-45-0520S

45

14

520

644

LSMT-45-0600S

45

16

600

724

LSMT-45-0680S

45

18

680

804

LSMT-45-0760S

45

20

760

884

LSMT-45-0840S

45

22

840

964

LSMT-45-0920S

45

24

920

1044

LSMT-45-1000S

45

26

1000

1124

LSMT-45-1080S

45

28

1080

1204

LSMT-45-1160S

45

30

1160

1284

LSMT-45-1240S

45

32

1240

1364

LSMT-45-1320S

45

34

1320

1444

LSMT-45-1400S

45

36

1400

1524

LSMT-45-1480S

45

38

1480

1604

LSMT-45-1560S

45

40

1560

1684

LSMT-45-1640S

45

42

1640

1764

LSMT-45-1720S

45

44

1720

1844

LSMT-45-1800S

45

46

1800

1924

LSMT-45-1880S

45

48

1880

2004

LSMT-45-1960S

45

50

1960

2084

LSMT-45-2040S

45

52

2040

2164

LSMT-45-2120S

45

54

2120

2244

LSMT-45-2200S

45

56

2200

2324

LSMT-45-2280S

45

58

2280

2404

LSMT-45-2360S

45

60

2360

2484

LSMT-45-2440S

45

62

2440

2564

LSMT-45-2520S

45

64

2520

2644

LSMT-45-2600S

45

66

2600

2724

LSMT-45-2680S

45

68

2680

2804

LSMT-45-2760S

45

70

2760

2884

LSMT-45-2840S

45

72

2840

2964

符合标准

EN61496-2:2013

安全类别

安全等级

Type4

DCavg

99%

CCF

100

光学特性

光轴间距

10mm/20mm/40mm

分辨率

17mm/27mm/47mm

光轴数量

4、6、8、10…144

保护高息

光轴间距×（光轴数量-1）

保护宽度

默认为A型：0.2-10m；可选配B型：0.2-15m

截面尺寸

35mm×35mm

电气特性

电源电压

24V±10%

功率

3～8W

响应时间

≤10ms

绝缘电阻

≥100MΩ

信号输出

NPN、PNP

工作温度

-10℃~+55℃

储存温度

-40℃~+70℃

工作湿度

35%RH~85%RH

抗光干扰

10000LUX

光幕形式

对射型

防护等级

IP69

产品认证

CE

电路保护

反接保护/输出短路保护，双路电路控制系统，自我诊断进行故障检查，更高级别冗余故障互检等

可配控制器

是

发射器

1

蓝色

0V

电源负极

2

棕色

DC12V-24V

电源正极

3

黄色

CP-

发、受光器同步线

4

绿色

CP+

发、受光器同步线

5

白色

OSSD3

辅助输出

6

黑色

EDM

外部触点监控功能

接收器

1

蓝色

0V

电源负极

2

棕色

DC12V-24V

电源正极

3

黄色

CP-

发、受光器同步线

4

绿色

CP+

发、受光器同步线

5

白色

OSSD1

NPN/PNP输出(指定)

6

黑色

OSSD2

NPN/PNP输出(指定)

部件名称

蓝灯(ON)

红灯(OFF)

传感器状态说明

发射器

常亮

常灭

通光状态

常灭

常亮

遮光状态

常灭

闪烁

故障状态：通信线缆异常

常灭

闪烁

故障状态：内部电路自检故障

闪烁

常灭

故障状态：EDM异常

常亮

常灭

通光状态

常灭

常亮

遮光状态

常灭

闪烁

故障状态：内部电路自检故障

双信号独立控制两个继电器线圈(K1、K2)并通过输出触点串联成一路来控制负载电路，如果一路信号失效，另一路信号依然可以起到保护作用。
